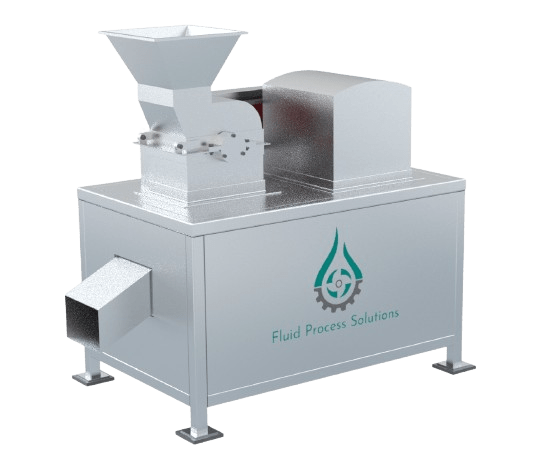

Pulverizer

FPS range of fruit and vegetable pulverizing machine is suitable for crushing fruits and vegetables into fine puree or grinding into fine puree. Pulverizers are majorly used for final stage grinding application which provide super fine finish and smoothness in the prepared puree or paste. The feed is majorly initially grinding with fruit mill/pulper and passed through pulverizers for final finish.

Features:

  • M.O.C: S.S. 304, S.S. 316L
  • Suitable for Volumes up to 2,000kg/hr
  • Drive Motors (in HP): 3 HP, 5 HP, 10 HP, 20HP
  • Feeding hopper/chute based on capacity for feeding
  • Optional container/bin for product output

Working Principle:

The material is fed into the feeding hopper into the working chamber which comprises of multiple sets of cutters rotating in anti-clockwise direction. The beater passes just beneath the ratchet teeth liner fitted inside the top half of the crushing chamber, leaving a gap of 3 mm between the liner teeth and tips of the rotating beater. The material thus caught between the liner teeth like a sword with a scissor action at a higher rpm. The material is then passed through the sieve fitted at the discharge. The material is then collected at the outlet bin of the pulverizer.



Major Applications:


  • Chilli Paste
  • Ginger Paste
  • Garlic Paste

Technical Specifications of Pulverizer

EquipmentFPS – PV
Sieve Size1/8″, 1/16″, 1/48″, 1/32″, 1/64″
Model No.PV-1003FP-1005FP-1010FP-1020
Motor (in HP)351020
Production Capacity (in kg/hr)**40070012002000
** Indicated Values may change as per the Viscosity of the Product.
